Syma | Carbon fiber Mini

Date: Spring 2016 | ID Freelance | Syma Helicopters

The objective was to create an entry level FPV racing drone for beginners, that had aspirational design elements of advanced racing drones.



My job was on realizing a new drone, differentiating it from competitors through a distinct form language, and seeing it through from ideation to semi-final prototyping.





Research

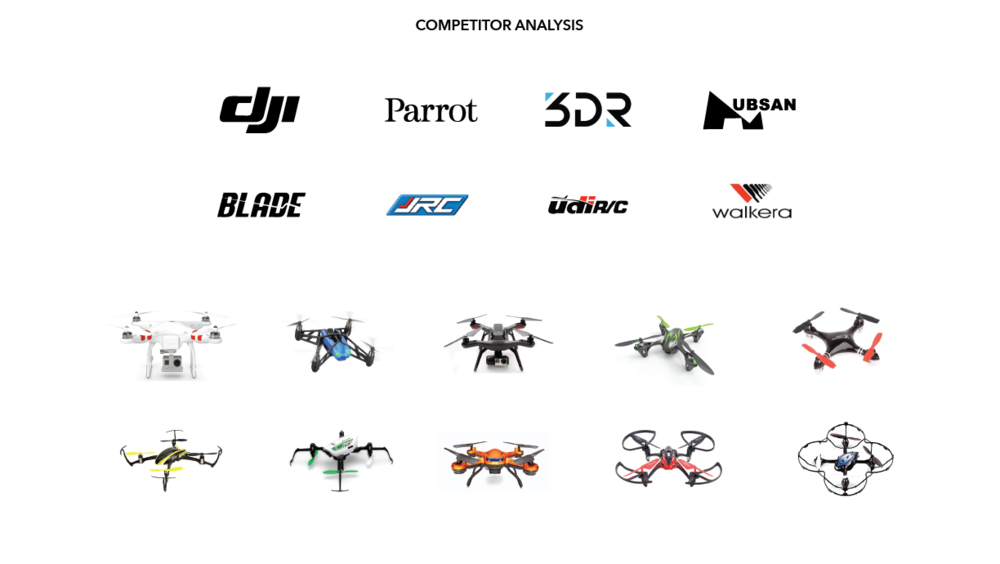

Market Form Analysis


Design Keywords


Mood Board


Ideation


Drone Orientation Explorations


Concept Development


Propeller & Frame Development

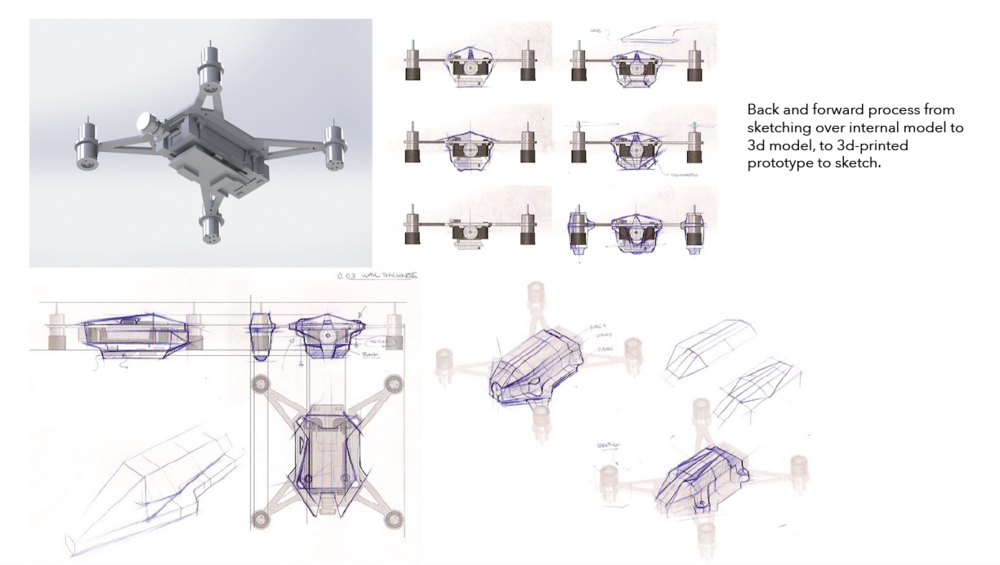

Replicating Internals


Mockups

SYMA WEB BOARD 3-08.png

Shell Refinement

SYMA WEB BOARD 3-09.png

Shell & Prop Refinement


** The refined design was sent to a third party company that produced the final sample. The final model was slightly altered from my design.



Lessons Learned in retrospect:

  • Aim for clearer storytelling through design language.

  • Emphasis more “aspirational elements” of Carbon Fiber to be the main feature, allure, and differentiator, to evoke a more advanced feel.
