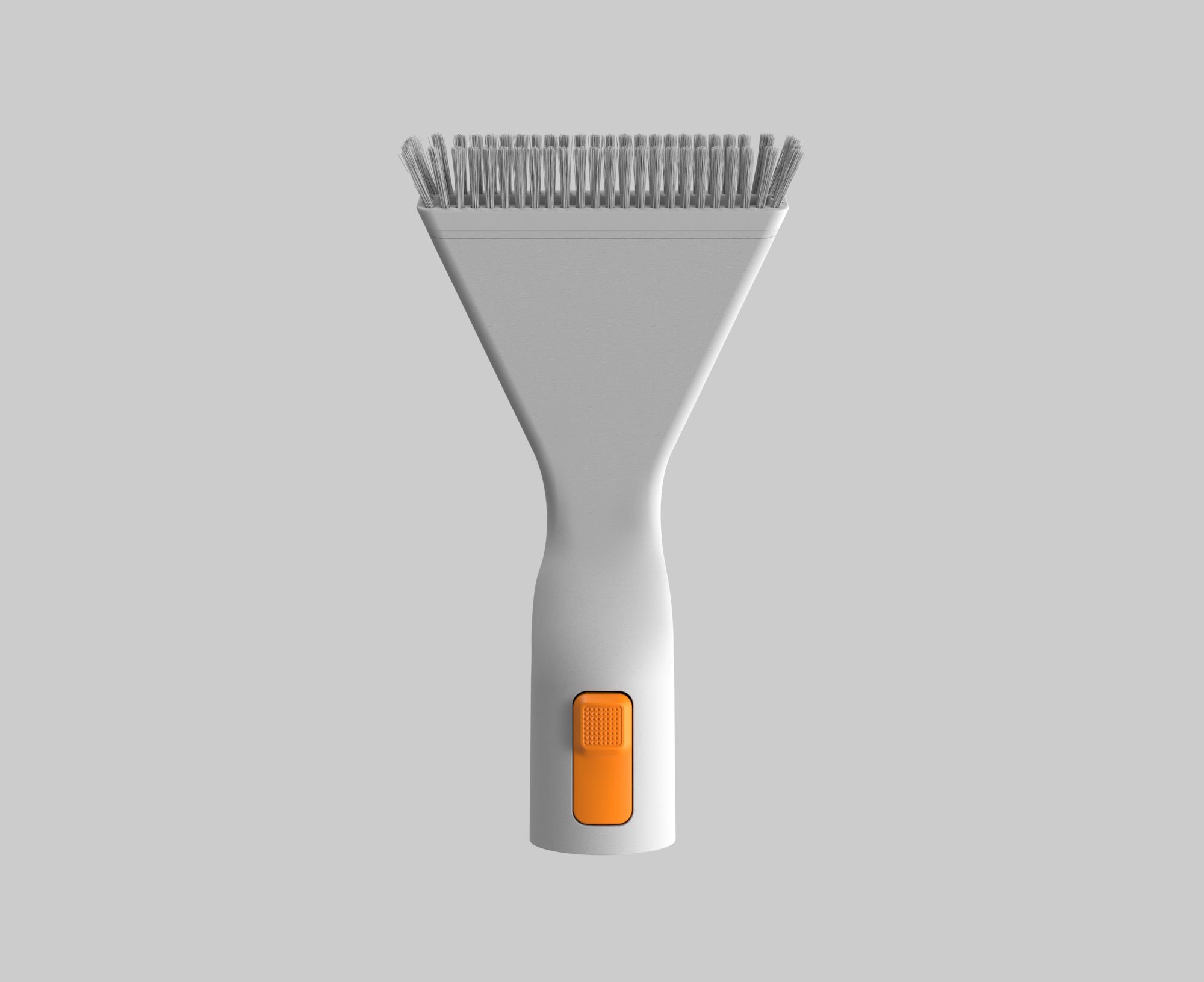

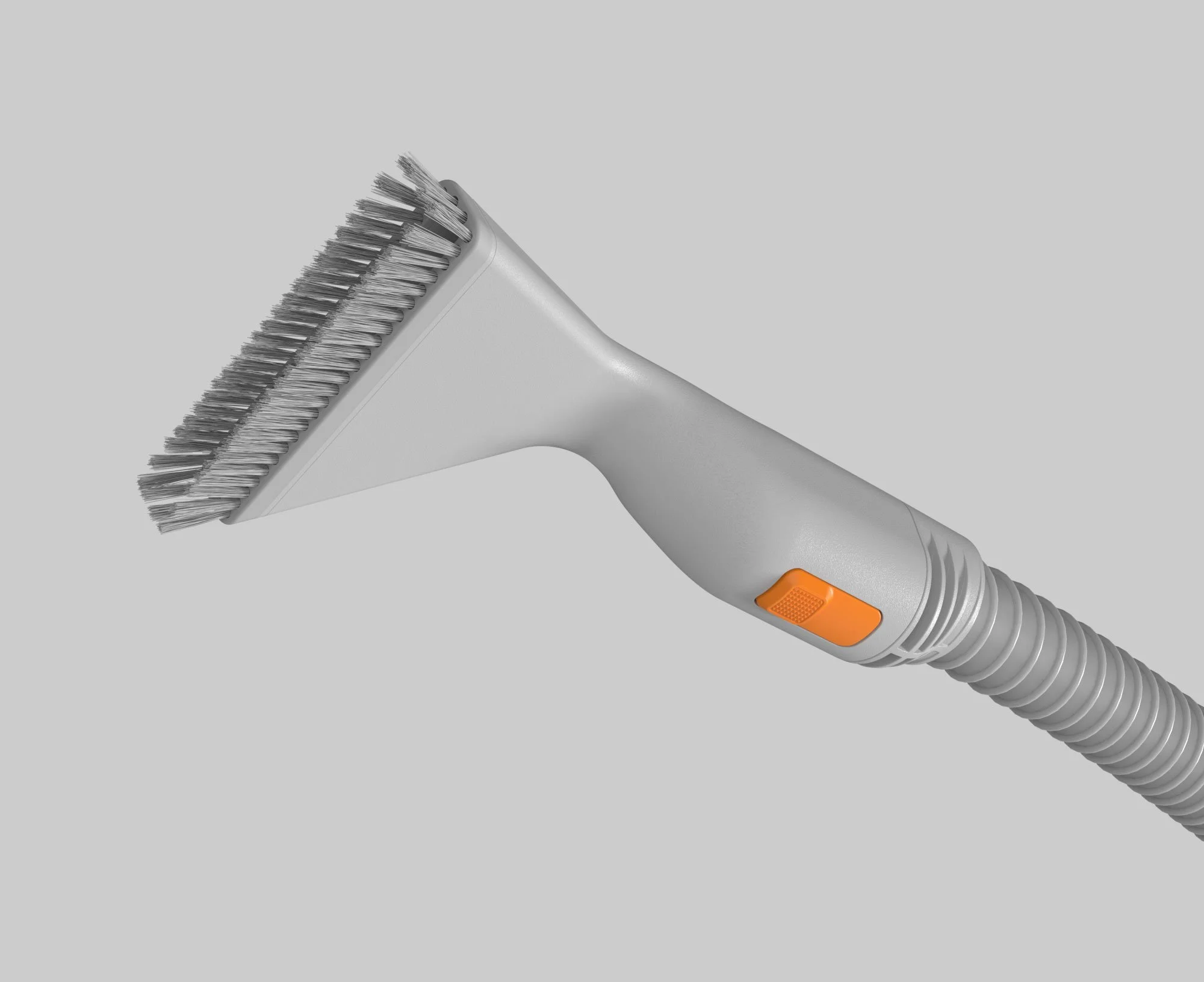

Dash Wand

DASH is a premium stick vacuum wand attachment designed as part of a modular car cleaning kit, optimized for dashboard cleaning workflows and access to awkward interior nooks, hard-to-reach crevices, and delicate surfaces.

Client

Personal

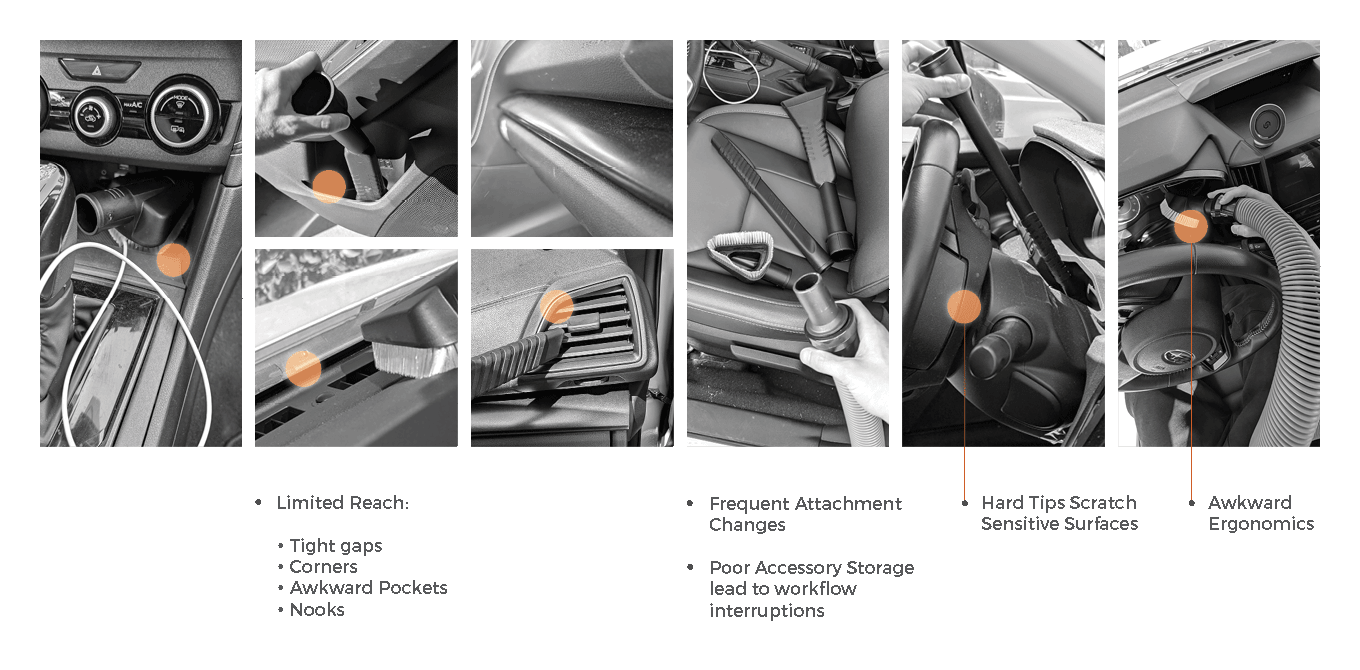

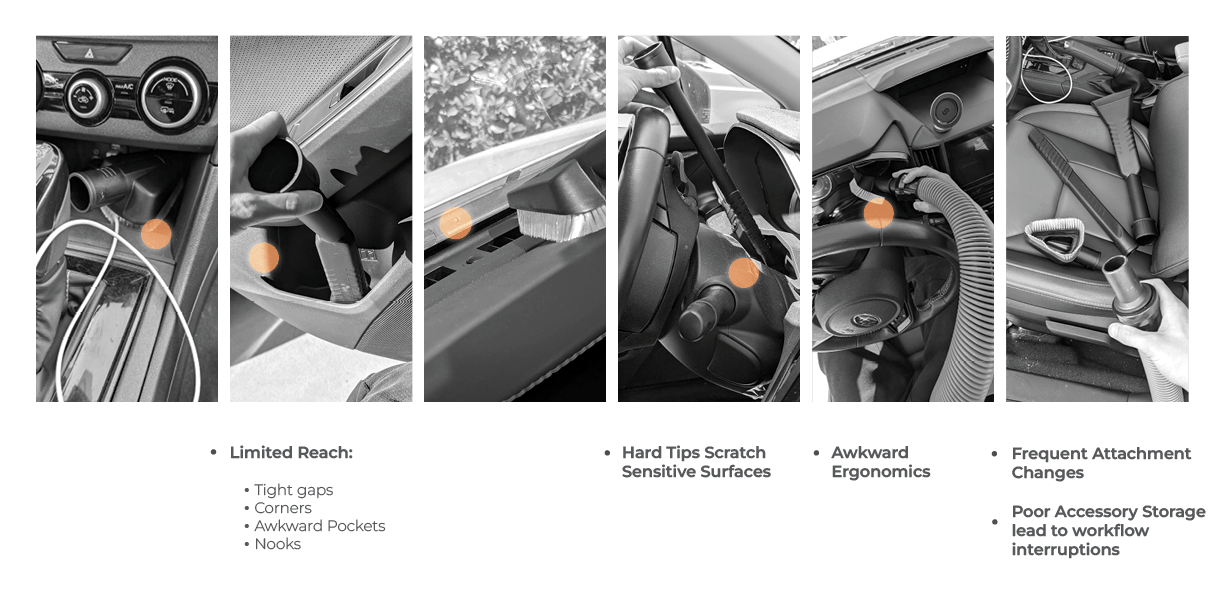

Pain Point Discovery

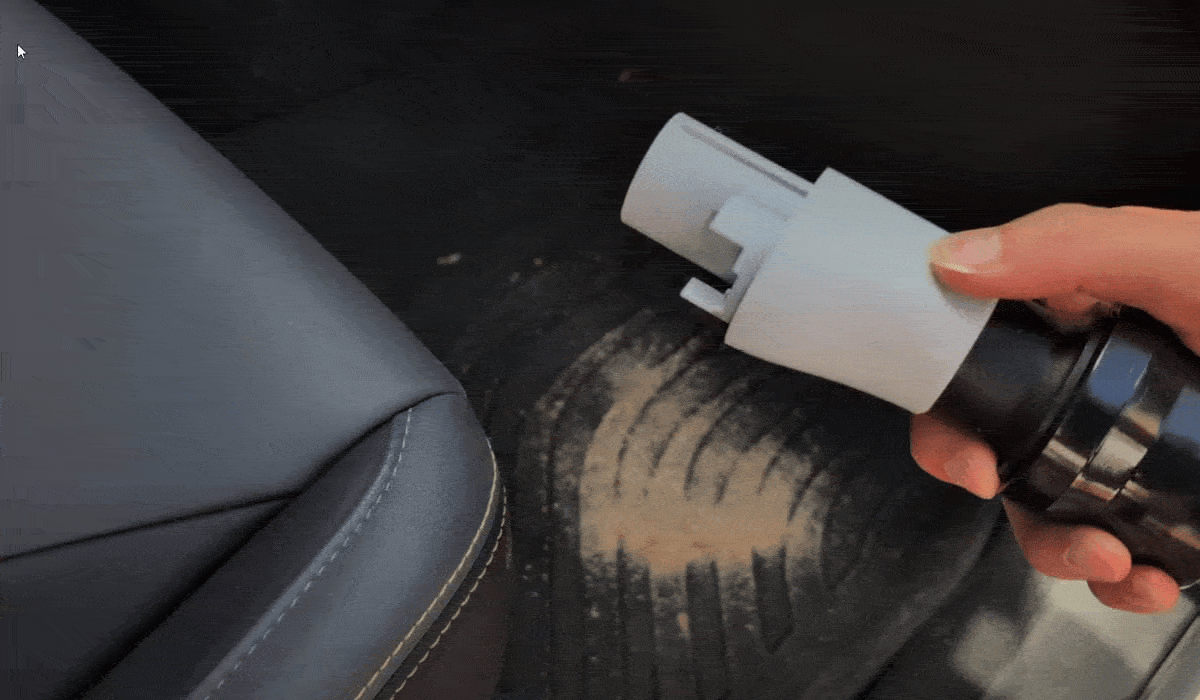

From in car vacuum wand testing I discovered existing vacuum wands had a number of user pain points.

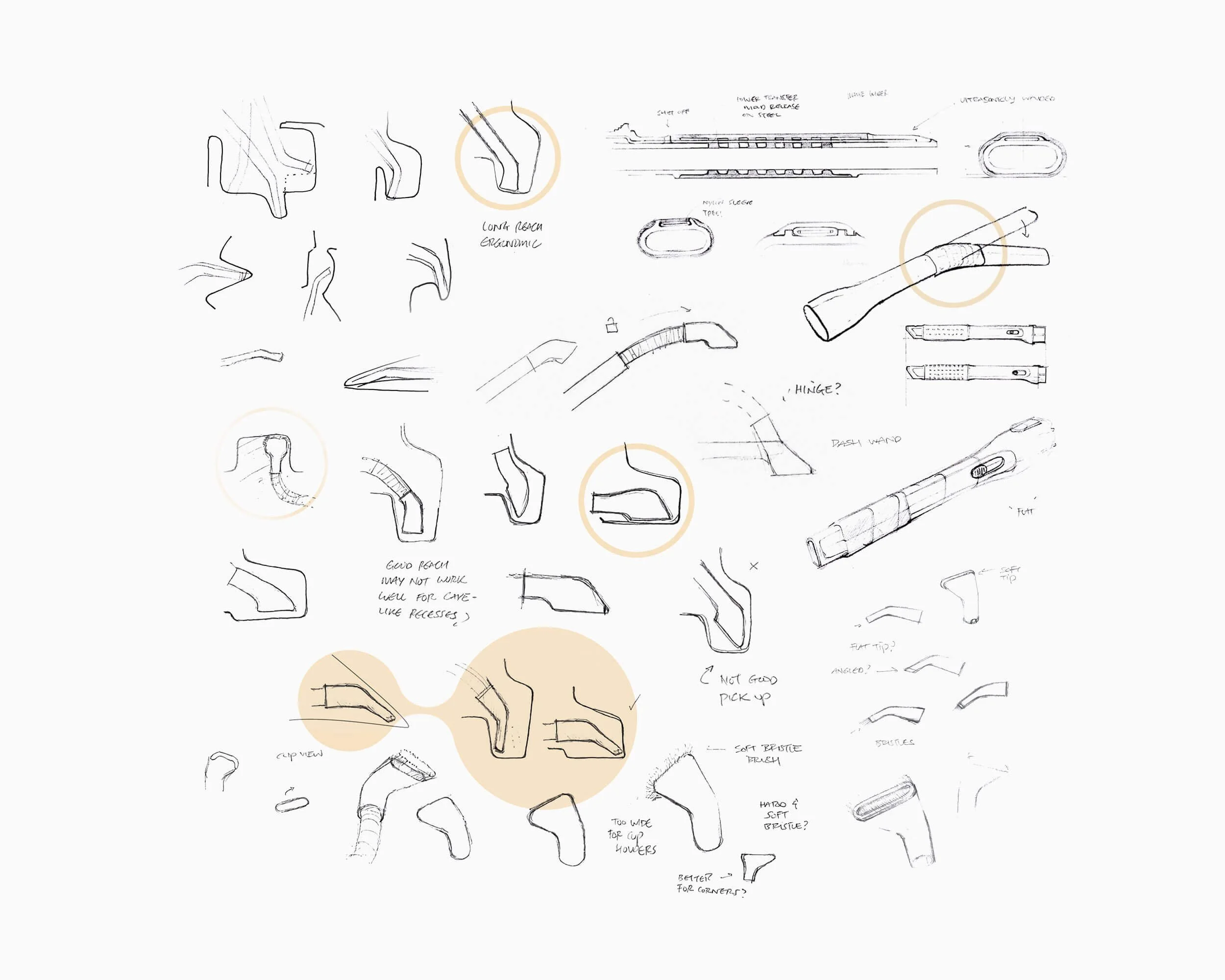

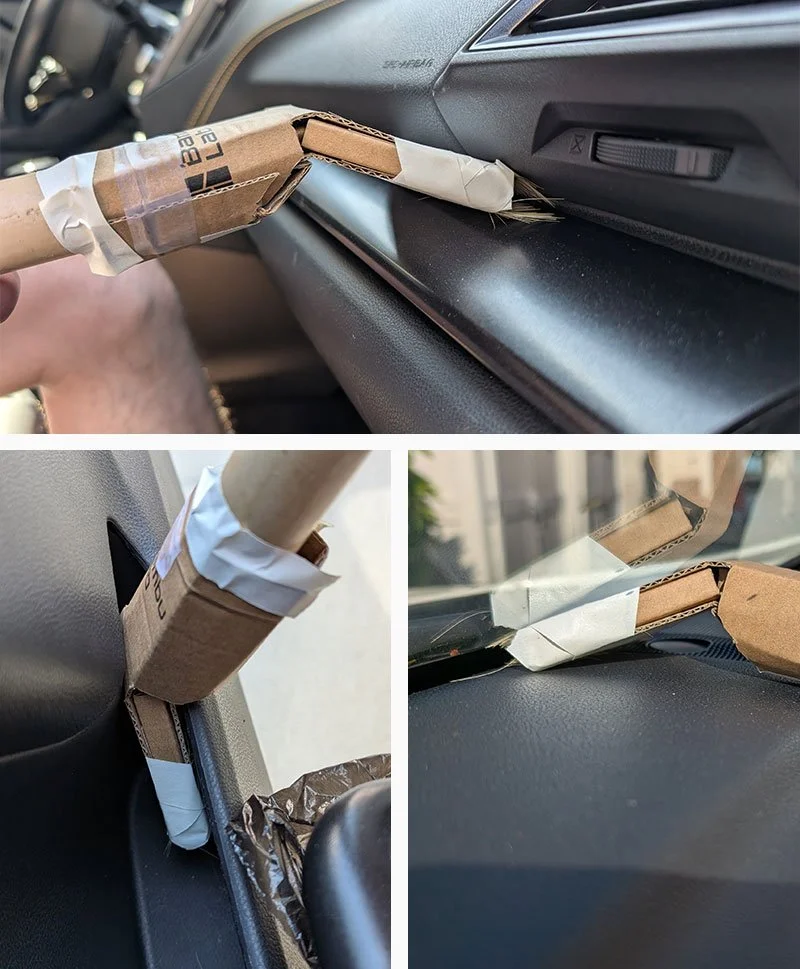

Initial Form Exploration

Is it long with an angled end? Was it a short 90° wide mouth Head? A Hinge Head? Or a flexible Crevice Nozzle? Felt the design should have a thin head for pin point pick up for cracks, but wide head to maintain efficient pickup footprint when cleaning the entire dashboard.

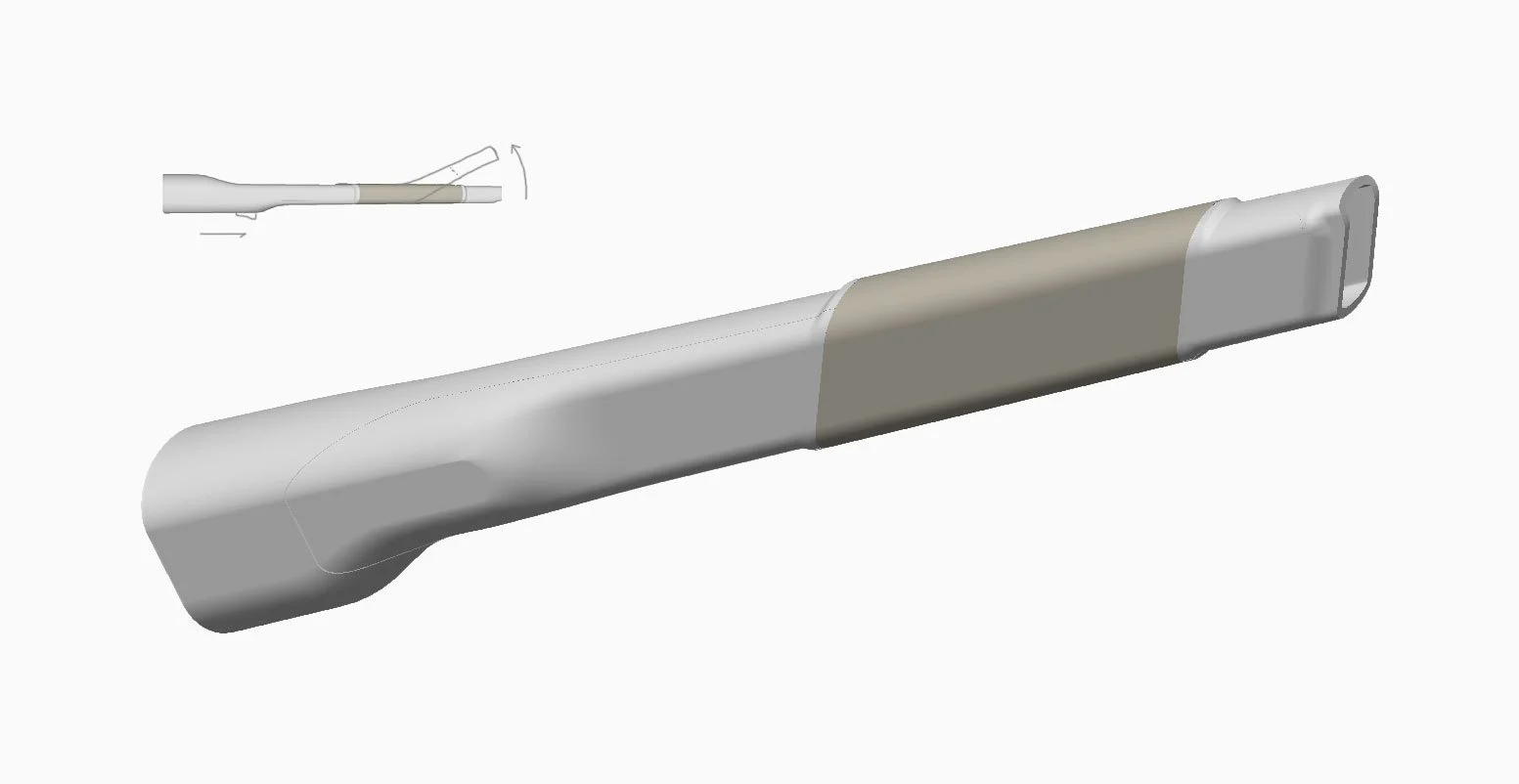

Early Concept - Flexible Crevice Nozzle

An early concept explored, with early questions...
Can we accomplish awkward reach with one less tool?

Ultimately abandoned due to complexity, cost, & clarity. Felt a dedicated fixed angle dashboard wand would be best in a kit without sacrificing the thin profile benefit of a crevice wand.

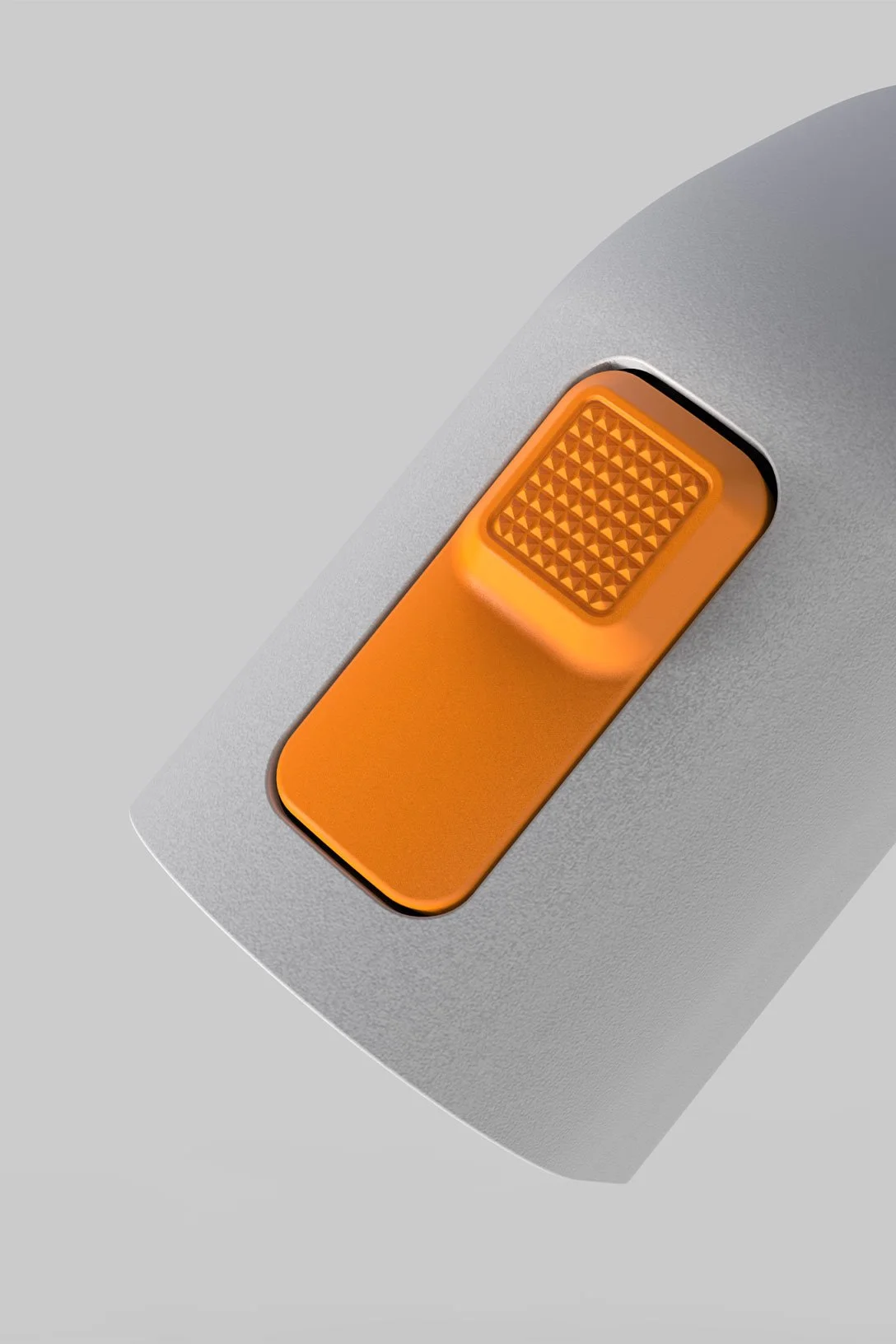

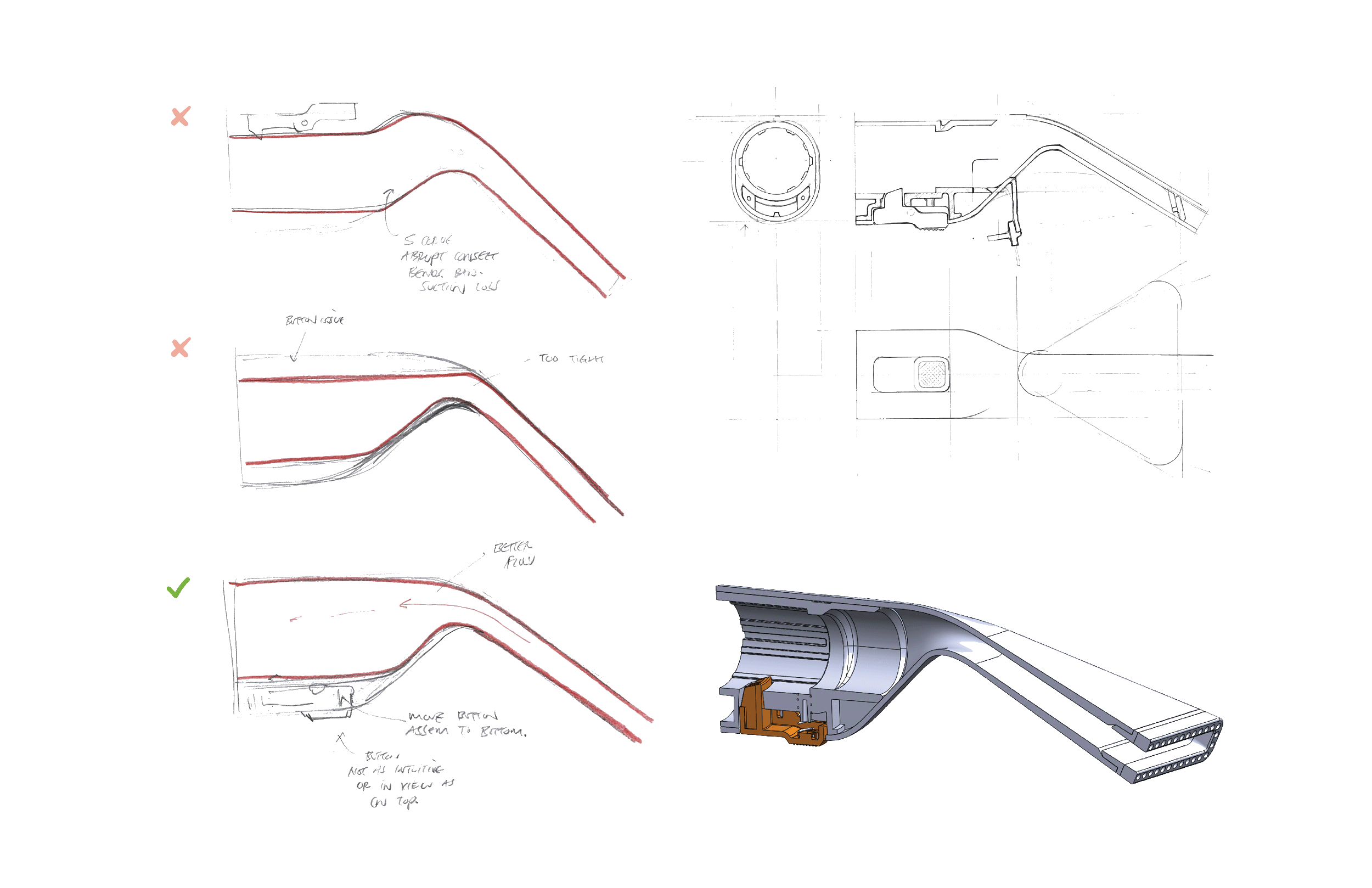

Balancing Airflow & Intuitive Fastening

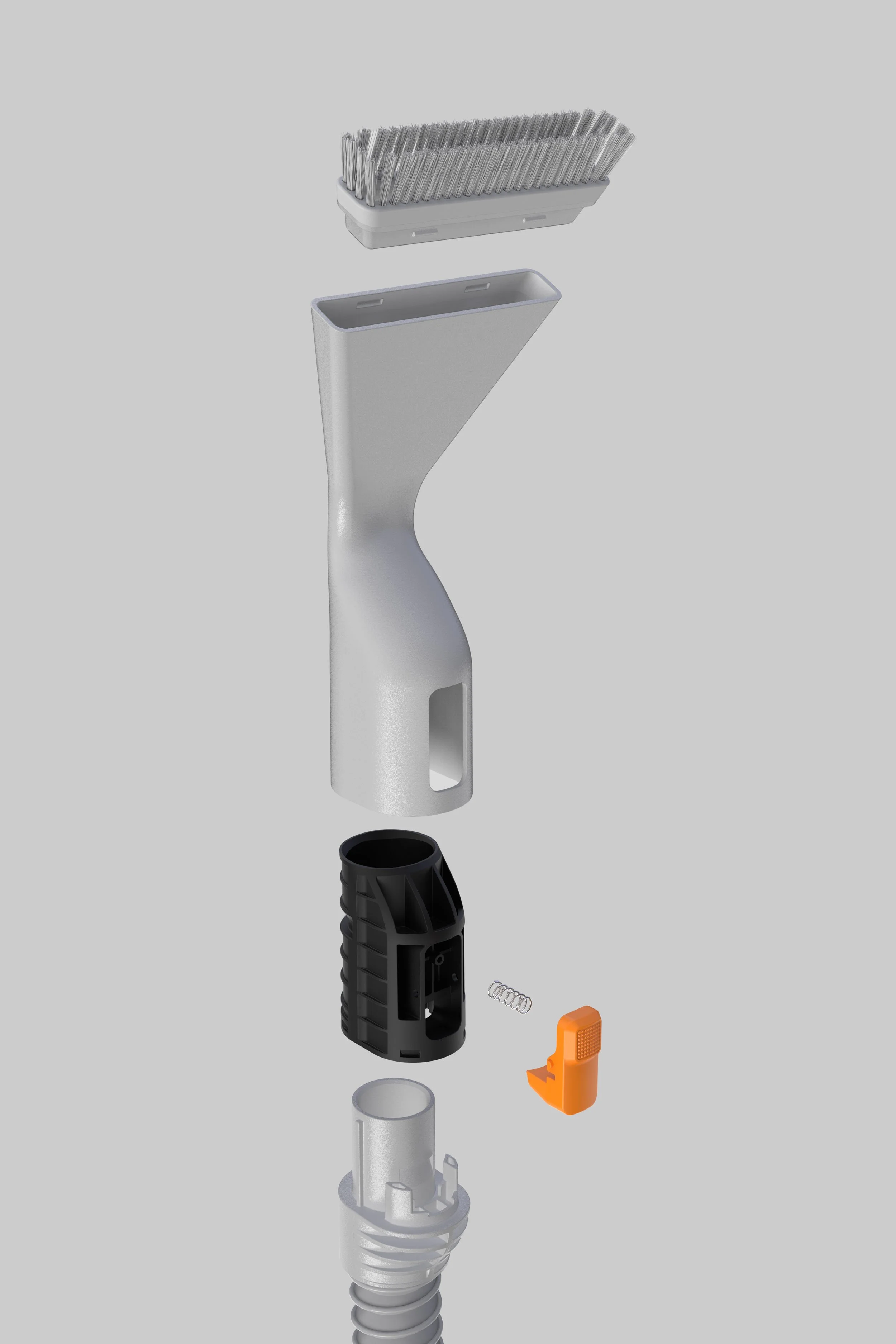

Refining the inner form - balancing button release placement, and airflow, and manufacturability across multiple wand heads. The inlet would have an overmolded rubber tip.
